Panasonic recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate power plane for the VCC and GND pins. Additionally, keep the signal traces short and away from noise sources, and use a common mode choke for the power supply lines.
Calibration involves applying a known magnetic field to the ARS1512 and adjusting the internal offset and gain registers. Panasonic provides a calibration procedure in the application note, which involves rotating the device in a known magnetic field and measuring the output values.
The ARS1512 is rated for operation from -40°C to 125°C, but the accuracy and sensitivity of the device may degrade at extreme temperatures. It's recommended to operate the device within the -20°C to 85°C range for optimal performance.
Yes, the ARS1512 is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-dampening material or a shock-absorbing mount to reduce the impact of vibrations on the device.
The ARS1512 outputs a 16-bit digital signal that requires processing to achieve accurate angle measurement. This involves applying a compensation algorithm to correct for non-linearity, temperature effects, and other sources of error. Panasonic provides a sample algorithm in the application note, but users may need to develop their own custom algorithm depending on their specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS1512 Overview

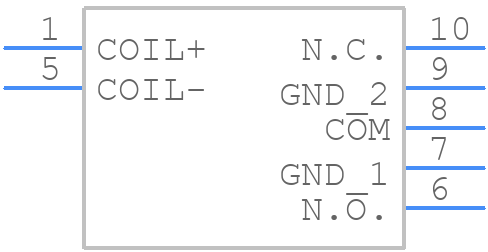

Use the download button to access the ARS1512 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS15,
or try a keyword search, such as RF Relays
