ARS30A24Z - Panasonic

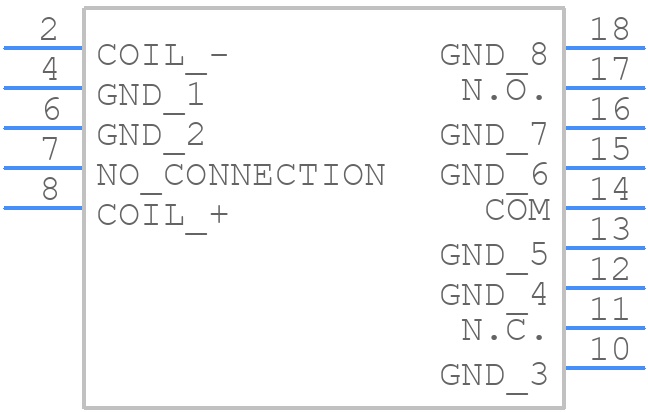

ARS30A24Z Details

• Manufacturer Part Number:

  ARS30A24Z

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  8.6 mm

• Body Height:

  8 mm

• Body Length or Diameter:

  14 mm

• Characteristic Impedance:

  75 Ω

• Coil Current(DC)-Max:

  0.008 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  2880 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Rating R Load:

  .5A@30VDC

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  300000 Cycle(s)

• Input Power-Max:

  1 W

• Insertion Loss-Max:

  0.5 dB

• Isolation-Max:

  30 dB

• JESD-609 Code:

  e4

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Operate Time:

  10 ms

• Operating Frequency-Max:

  3000 MHz

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TAPE AND REEL

• Physical Dimension:

  14mm x 8.6mm x 8mm

• Relay Action:

  MOMENTARY

• Relay Function:

  SPDT

• Relay Type:

  RF RELAY

• Release Time:

  6 ms

• Surface Mount:

  NO

• Switching Time:

  16 ms

• Terminal Finish:

  Gold (Au)

• Termination Type:

  SOLDER

• VSWR:

  1.5
