A good PCB layout for the ARS34Y03 should ensure that the input and output pins are separated, and the power supply lines are decoupled with capacitors. Additionally, the PCB should be designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). A 4-layer PCB with a solid ground plane and a separate power plane is recommended.
The ARS34Y03 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. The PCB should also be designed to dissipate heat efficiently.
Although the datasheet specifies a minimum input voltage of 2.7V, it's recommended to operate the ARS34Y03 with a minimum input voltage of 3.0V to ensure stable operation and optimal performance.
To troubleshoot issues with the ARS34Y03, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals using an oscilloscope to identify any anomalies. Also, ensure that the PCB layout is correct, and the device is properly soldered. If the issue persists, consult the datasheet and application notes for further guidance.
The ARS34Y03 is a surface-mount device and can be susceptible to vibration-induced failures. To ensure reliable operation in high-vibration environments, it's recommended to use a vibration-resistant mounting method, such as using a vibration-dampening material or a secure screw-down method.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS34Y03 Overview

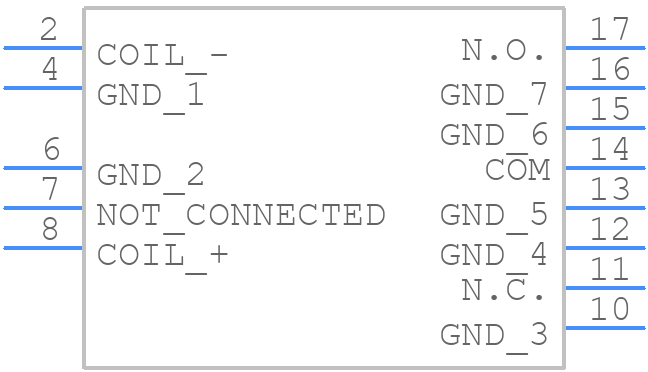

Use the download button to access the ARS34Y03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS34,
or try a keyword search, such as RF Relays
