ARWSCBRD-XRS7004E - Arrow Electronics

Description: The Arrow SpeedChips ARWSCBRD-XRS7004E Reference Board is a powerful industrial Ethernet switch designed to support HSR and PRP protocols. It is based on the ARWSC-XRS7004E Ethernet Switch and provides high-speed, reliable connectivity for industrial applications. The board features four 10/100/1000Base-T ports, two 10/100/1000Base-X ports, and two 10/100/1000Base-X SFP ports. It also supports a wide range of industrial protocols, including EtherCAT, Profinet, and Modbus. The board is designed to be robust

Download ARWSCBRD-XRS7004E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ARWSCBRD-XRS7004E model

Email notifications will be applied after download.

Send part feedback

Symbol

ARWSCBRD-XRS7004E - Arrow Electronics - PCB symbol

PCB Footprints

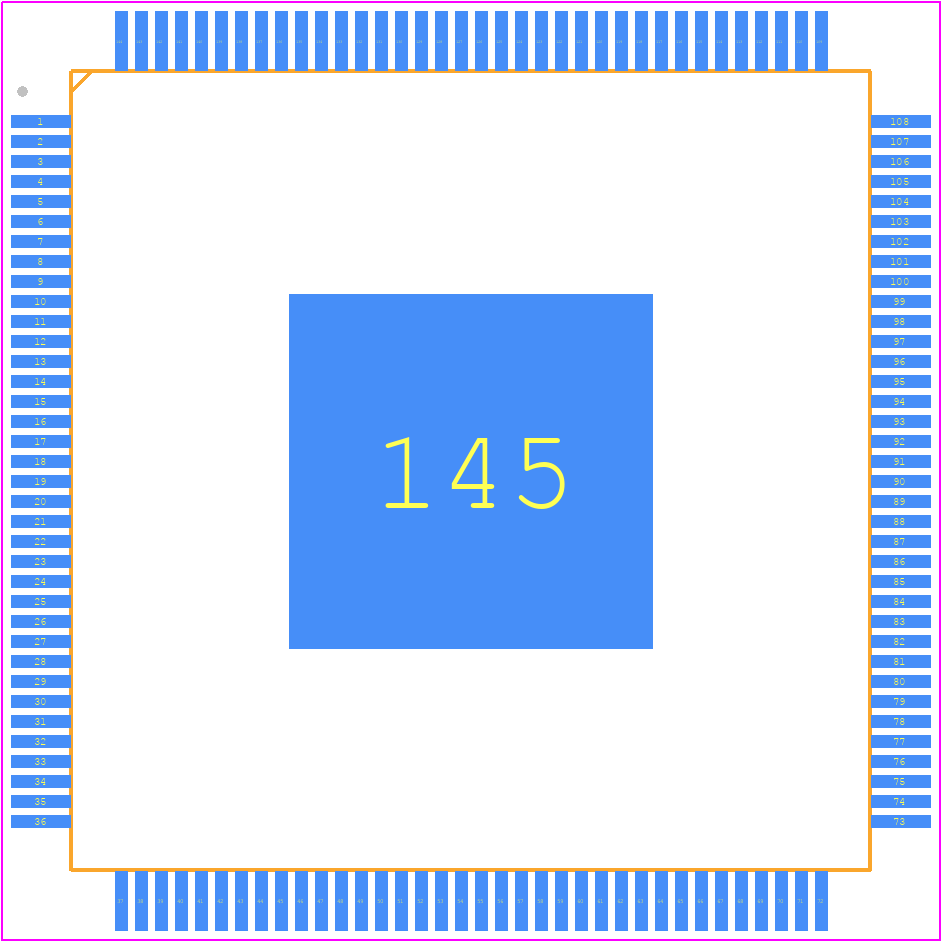

ARWSCBRD-XRS7004E - Arrow Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - ARWSCBRD-XRS7004E

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARWSCBRD-XRS7004E
Part Number ARWSCBRD-XRS7004E
Manufacturer Arrow Electronics
Pin Count 145
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - ARWSCBRD-XRS7004E
Released Date Jul 17, 2026
Last Modified Date Jul 17, 2026 9:26 AM UTC
Pinout / Pin List Click Here (Member Only)

ARWSCBRD-XRS7004E Details
