The recommended land pattern for AS-8.000-20-SMD-TR is a rectangular pad with a size of 1.5mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape.
To minimize the impact of vibration and shock on the crystal, it's recommended to use a shock-absorbing material, such as a silicone adhesive, to mount the crystal to the PCB. Additionally, ensure the PCB is properly secured to the device or enclosure.
Store the AS-8.000-20-SMD-TR in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 40°C, with a relative humidity of 60% or less.
While the AS-8.000-20-SMD-TR is rated for operation up to 85°C, it's not recommended for use in high-temperature environments above 85°C. Prolonged exposure to high temperatures can affect the crystal's frequency stability and overall performance.
To ensure frequency stability, it's essential to follow proper PCB design and layout guidelines, including using a low-ESR capacitor and a stable voltage supply. Additionally, consider using a crystal oscillator with a built-in PLL or a frequency synthesizer to minimize frequency drift.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS-8.000-20-SMD-TR Overview

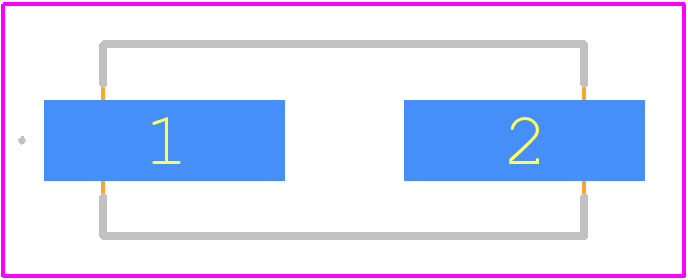

Use the download button to access the AS-8.000-20-SMD-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS-8.,
or try a keyword search, such as Quartz Crystals
