AS1115-BSST - ams OSRAM

Description: AS1115 LED Driver IC 64LED matrix driver with 16keys

Download AS1115-BSST Model

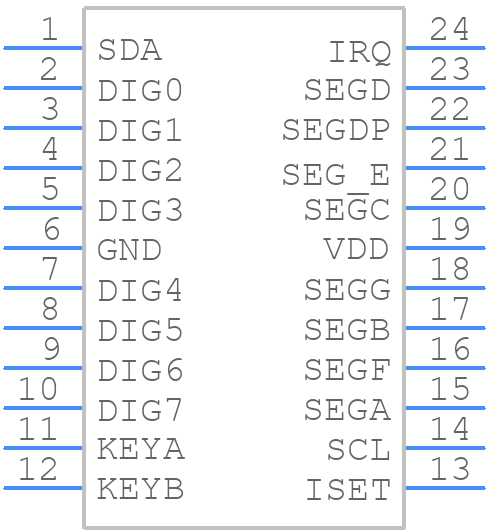

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AS1115-BSST - ams OSRAM PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-24
click to zoom
3D Models
AS1115-BSST - ams OSRAM  - 3D model - Small Outline Packages - QSOP-24
click to zoom

AS1115-BSST Details

  • Manufacturer Part Number:

    AS1115-BSST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    ams OSRAM Group

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    1

  • Number of Digits/Characters:

    8-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    7

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

  • fmax-Min:

    1 MHz

AS1115-BSST Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The thermal pad should be connected to a large copper area on the PCB to ensure good heat dissipation.
  • Use a reflow soldering process with a peak temperature of 260°C. Ensure the soldering iron is set to a temperature of 350°C to 370°C. Apply a small amount of solder paste to the thermal pad and reflow according to the recommended soldering profile.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • The AS1115-BSST has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To handle this, ensure good heat dissipation, use a heat sink if necessary, and implement a thermal monitoring system to detect and respond to thermal shutdown events.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the output capacitor. The capacitor should be placed as close as possible to the VOUT pin to minimize noise and ensure stable operation.
