The recommended PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. Ams OSRAM provides a reference layout in their application note AN000141.
To ensure reliable communication, make sure to follow the I2C protocol guidelines, use a pull-up resistor on the SCL line, and implement error handling mechanisms such as checksum verification and retries. Also, ensure that the microcontroller's I2C clock frequency is within the AS1130-BTST's specified range.
The AS1130-BTST is specified to operate from -40°C to 85°C. However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to consider the application's temperature range and potential thermal gradients when designing the system.
The AS1130-BTST is not hermetically sealed, so it's not recommended for use in humid or high-moisture environments. If the device is exposed to moisture, it may lead to reliability issues or even failure. Consider using a conformal coating or potting the device to protect it from moisture.
The AS1130-BTST has an internal calibration mechanism, but it may require additional calibration for specific applications. Ams OSRAM provides a calibration procedure in their application note AN000142, which involves measuring the device's output at different temperatures and adjusting the internal calibration coefficients accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS1130-BTST Overview

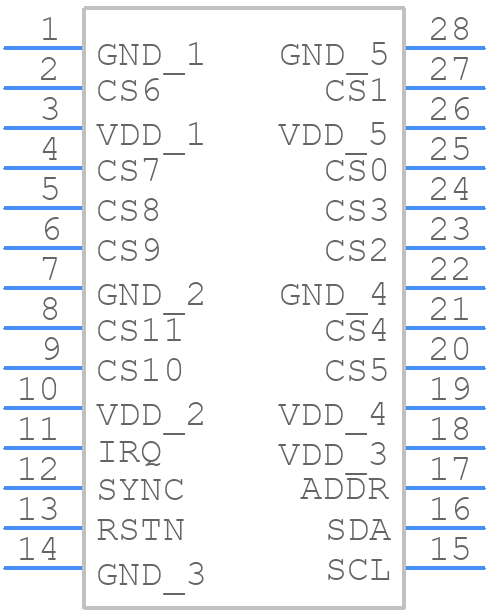

Use the download button to access the AS1130-BTST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS113,
or try a keyword search, such as Display Drivers
