The AS1C8M16PL-70BIN has an industrial temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications.
The AS1C8M16PL-70BIN requires a controlled power-up and power-down sequence to prevent damage. It's recommended to follow the power-up sequence of VCC, then VPP, and power-down sequence of VPP, then VCC, with a minimum delay of 100ns between each step.
To minimize noise and ensure reliable operation, it's recommended to follow a controlled impedance PCB layout, with a solid ground plane, and to route the address and data lines as close as possible to the device. Additionally, decoupling capacitors should be placed close to the device's power pins.
The AS1C8M16PL-70BIN has a standby current of 10mA (typical) and a power consumption of 550mW (typical) when operating at 70ns. To minimize power consumption, it's recommended to use the device's standby mode when not in use, and to optimize the system's power management scheme.
The AS1C8M16PL-70BIN is designed to meet the EMC and EMI requirements of various industry standards, including IEC 61000-4-2 and IEC 61000-4-4. However, the actual EMC and EMI performance may vary depending on the system design and implementation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS1C8M16PL-70BIN Overview

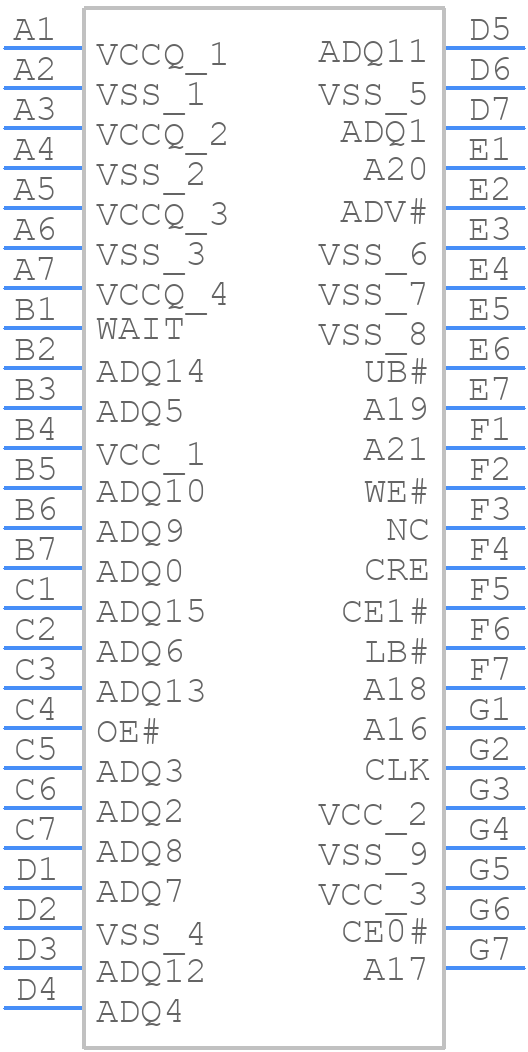

Use the download button to access the AS1C8M16PL-70BIN schematic symbol, PCB footprint, and 3D model.
