Description:The AS3820 is a 16-channel precision LED for use in LCD-backlight panels. Dynamic power feedback controls the external power supply to guarantee the best efficiency.Built-in safety features include thermal shutdown as well as open and short LED detection. The device is programmable via a serial interface.
Renesas provides a recommended PCB layout guide in their application note (AN1844) for the AS3820A-ZQFT, which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The input capacitor (CIN) should be a low-ESR ceramic capacitor with a minimum capacitance of 10uF, and the output capacitor (COUT) should be a low-ESR ceramic capacitor with a minimum capacitance of 22uF. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
To troubleshoot issues with the AS3820A-ZQFT, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes and thermal imaging tools to identify potential issues. Consult the datasheet, application notes, and Renesas support resources for guidance.
Yes, the AS3820A-ZQFT is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, follow proper PCB layout guidelines, use shielding, and implement EMI filters. Consult the datasheet and application notes for specific EMI/EMC considerations and guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS3820A-ZQFT Overview

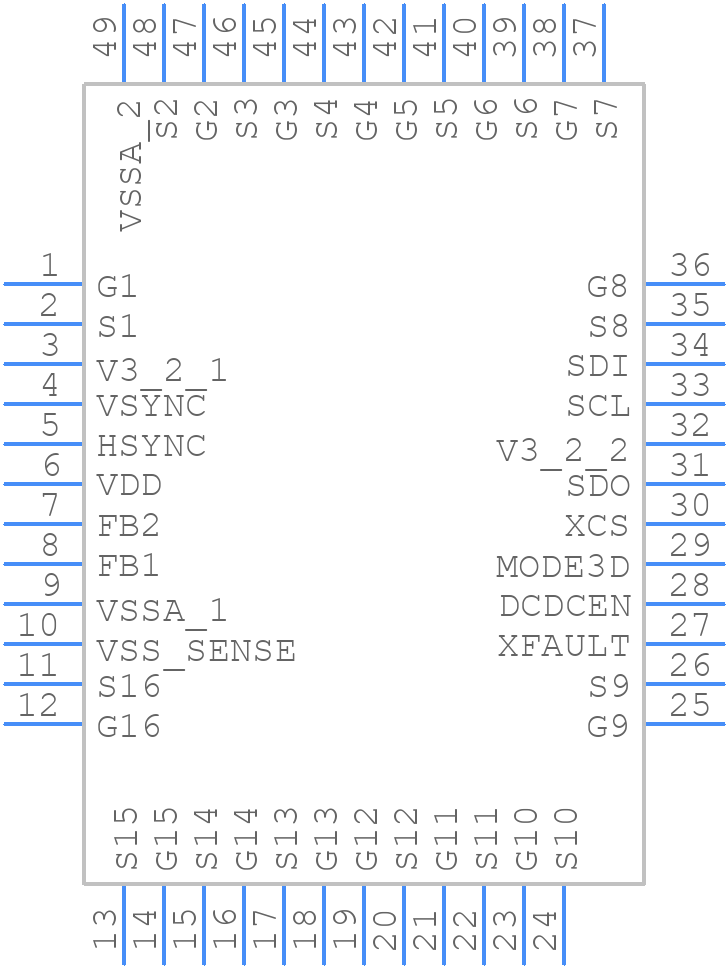

Use the download button to access the AS3820A-ZQFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS382,
or try a keyword search, such as Display Drivers
