AS3933-BTST - ScioSense

Description: RFID Transponders AS3933-BTST TSSOP16 LF T&RDP

Download AS3933-BTST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

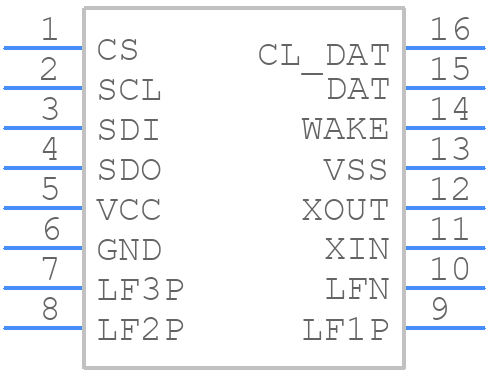

AS3933-BTST - ScioSense - PCB symbol
click to zoom
PCB Footprints
AS3933-BTST - ScioSense PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin TSSOP
click to zoom
3D Models
AS3933-BTST - ScioSense - 3D model - Small Outline Packages - 16-pin TSSOP
click to zoom

AS3933-BTST Details

  • Manufacturer Part Number:

    AS3933-BTST

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ScioSense

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AS3933-BTST Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the antenna away from noisy components and ensure a clear keep-out zone around the chip.
  • Calibration involves adjusting the internal capacitors and resistors. Use the provided calibration software and follow the application note guidelines for a successful calibration process.
  • The maximum detection distance is approximately 40 km (25 miles), depending on the storm intensity and environmental conditions.
  • Yes, the AS3933-BTST can detect both cloud-to-cloud and cloud-to-ground lightning strikes, but it's more sensitive to cloud-to-ground strikes.
  • The AS3933-BTST has built-in EMI filtering and shielding, but it's still important to follow proper PCB design and layout guidelines to minimize EMI effects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AS3933-BTST Overview

Use the download button to access the AS3933-BTST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS393, or try a keyword search, such as Other Telecom ICs
