AS4C128M16D3B-12BCN - Alliance Memory

AS4C128M16D3B-12BCN Details

• Manufacturer Part Number:

  AS4C128M16D3B-12BCN

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

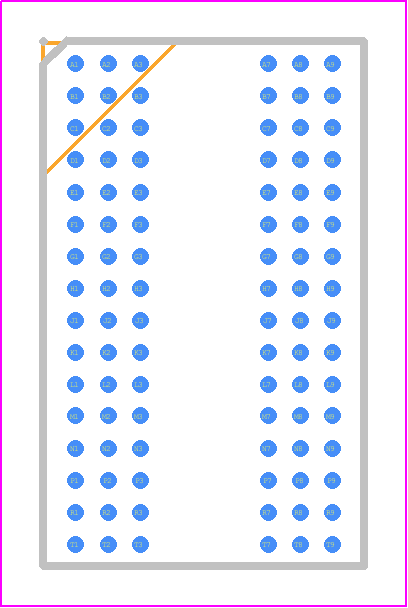

• Package Description:

  FBGA-96

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.36

• Manufacturer:

  Alliance Memory Inc

• YTEOL:

  0

• Access Mode:

  MULTI BANK PAGE BURST

• Additional Feature:

  AUTO/SELF REFRESH

• JESD-30 Code:

  R-PBGA-B96

• Length:

  13 mm

• Memory Density:

  2147483648 bit

• Memory IC Type:

  DDR3 DRAM

• Memory Width:

  16

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  96

• Number of Words:

  134217728 words

• Number of Words Code:

  128000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Organization:

  128MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  1 mm

• Self Refresh:

  YES

• Supply Voltage-Max (Vsup):

  1.575 V

• Supply Voltage-Min (Vsup):

  1.425 V

• Supply Voltage-Nom (Vsup):

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  8 mm
