AS4C256M16D3L-12BIN footprint, schematic symbol and 3D model by Alliance Memory

Symbol

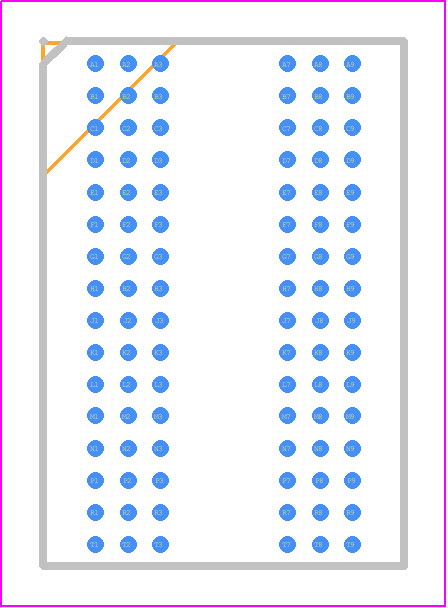

PCB Footprints

3D Models

AS4C256M16D3L-12BIN Details

Manufacturer Part Number:
AS4C256M16D3L-12BIN
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
9 X 13 MM, 1.20 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, FBGA-96
ECCN Code:
EAR99
HTS Code:
8542.32.00.36
Manufacturer:
Alliance Memory Inc
YTEOL:
0
Access Mode:
MULTI BANK PAGE BURST
Additional Feature:
AUTO/SELF REFRESH
JESD-30 Code:
R-PBGA-B96
Length:
13 mm
Memory Density:
4294967296 bit
Memory IC Type:
DDR3L DRAM
Memory Width:
16
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Ports:
1
Number of Terminals:
96
Number of Words:
268435456 words
Number of Words Code:
256000000
Operating Mode:
SYNCHRONOUS
Organization:
256MX16
Package Body Material:
PLASTIC/EPOXY
Package Code:
TFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, THIN PROFILE, FINE PITCH
Seated Height-Max:
1.2 mm
Self Refresh:
YES
Supply Voltage-Max (Vsup):
1.45 V
Supply Voltage-Min (Vsup):
1.283 V
Supply Voltage-Nom (Vsup):
1.35 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Width:
9 mm

The maximum operating temperature range for the AS4C256M16D3L-12BIN is 0°C to 70°C.
The AS4C256M16D3L-12BIN requires a refresh cycle every 64ms, with a minimum of 4096 refreshes within an 64ms interval.
The AS4C256M16D3L-12BIN supports a maximum clock frequency of 133MHz.
After power-up, the SDRAM must be initialized by sending a series of commands, including a PRECHARGE ALL command, an AUTOREFRESH command, and a MODE REGISTER SET command.
The AS4C256M16D3L-12BIN has a latency of 3 clock cycles (CL3).

Community Provided

System Verified

Community Approved

Use the download button to access the AS4C256M16D3L-12BIN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS4C2, or try a keyword search, such as DRAMs
