AS4C512M16D3LC-12BIN - Alliance Memory

Description: DRAM DDR3L, 8G, 512M X 16, 1.35V, 96-BALL FBGA, 800MHZ INDUSTRIAL TEMP C Die (MT41K512M16HA-125IT:A),

Download AS4C512M16D3LC-12BIN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AS4C512M16D3LC-12BIN model

Email notifications will be applied after download.

Send part feedback

Symbol

AS4C512M16D3LC-12BIN - Alliance Memory - PCB symbol

PCB Footprints

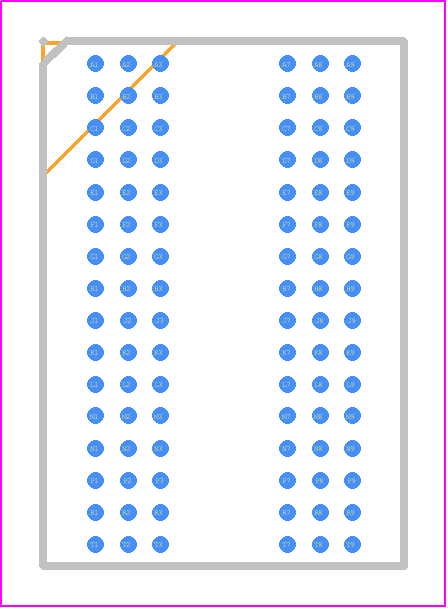

AS4C512M16D3LC-12BIN - Alliance Memory PCB footprint - BGA - BGA - 96-Ball BGA Package 9x13x1.2mm(max)

3D Models

AS4C512M16D3LC-12BIN - Alliance Memory - 3D model - BGA - 96-Ball BGA Package 9x13x1.2mm(max)

Datasheet Download Datasheet
Stock & Prices Price & Stock for AS4C512M16D3LC-12BIN
Part Number AS4C512M16D3LC-12BIN
Manufacturer Alliance Memory
Pin Count 96
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 96-Ball BGA Package 9x13x1.2mm(max)
Released Date Jul 1, 2025
Last Modified Date Jul 1, 2025 7:50 AM UTC
Pinout / Pin List Click Here (Member Only)

AS4C512M16D3LC-12BIN Details

Manufacturer Part Number:
AS4C512M16D3LC-12BIN
Manufacturer:
Alliance Memory Inc

Trust Checks

Community Provided

System Verified

Community Approved

AS4C512M16D3LC-12BIN Overview

Use the download button to access the AS4C512M16D3LC-12BIN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS4C5, or try a keyword search, such as DRAMs
