AS4C8M32SA-7BCN - Alliance Memory

Description: DRAM SDRAM, 256Mb, 8M X 32, 3.3V, 90-ball FBGA, 143 MHz, Commercial Temp - Tray

Download AS4C8M32SA-7BCN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

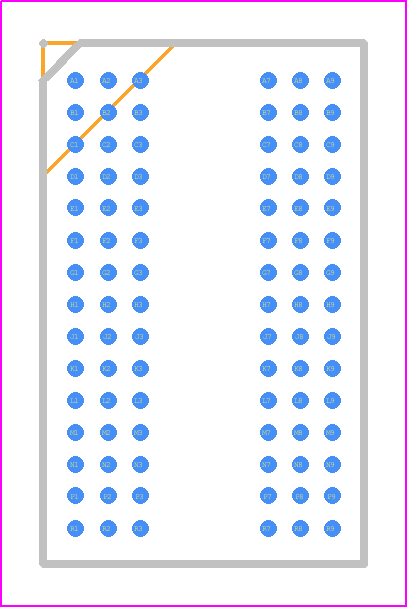

AS4C8M32SA-7BCN - Alliance Memory PCB footprint - BGA - BGA - 90-ball FBGA .
click to zoom
3D Models
AS4C8M32SA-7BCN - Alliance Memory  - 3D model - BGA - 90-ball FBGA .
click to zoom

AS4C8M32SA-7BCN Details

  • Manufacturer Part Number:

    AS4C8M32SA-7BCN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-90

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.24

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-11-16

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4

  • Access Mode:

    FOUR BANK PAGE BURST

  • Access Time-Max:

    5.4 ns

  • Additional Feature:

    AUTO/SELF REFRESH

  • JESD-30 Code:

    R-PBGA-B90

  • Length:

    13 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    SYNCHRONOUS DRAM

  • Memory Width:

    32

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    90

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    8MX32

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8 mm

AS4C8M32SA-7BCN Frequently Asked Questions (FAQs)

  • The AS4C8M32SA-7BCN has an operating temperature range of 0°C to 70°C, and an extended temperature range of -40°C to 85°C for industrial applications.
  • The AS4C8M32SA-7BCN requires a refresh cycle every 64ms (tREF) to maintain data integrity. You can use a refresh counter to keep track of the refresh cycles and issue an AUTO REFRESH command (CBR) to refresh the entire memory array.
  • The AS4C8M32SA-7BCN supports a maximum clock frequency of 143MHz, with a corresponding data transfer rate of 286Mbps.
  • During power-up, apply power to VDD and VDDQ simultaneously, and then wait for at least 200us before applying a clock signal. During power-down, remove the clock signal and then power down VDD and VDDQ simultaneously.
  • The AS4C8M32SA-7BCN has a latency of 7 clock cycles (CL7) for read and write operations.
