Ams OSRAM recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate analog and digital ground plane on the top layer. The sensor should be placed away from high-frequency components and traces.
Calibration involves measuring the sensor's response to a known light source, such as a NIST-traceable calibration lamp, and adjusting the gain and offset values accordingly. Ams OSRAM provides a calibration guide and software tools to assist with this process.
The AS7343-DLGT can handle ambient light intensities up to 100,000 lux, but it's recommended to use an optical filter or diffuser to reduce the intensity and prevent saturation.
The AS7343-DLGT is designed for visible light spectral measurements (360-830 nm). While it may respond to some UV or IR light, it's not optimized for these ranges and may not provide accurate results. Ams OSRAM offers other sensors for UV and IR spectral measurements.
The AS7343-DLGT has an I2C interface and can be connected to a microcontroller or FPGA using a standard I2C bus. Ams OSRAM provides example code and interface guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS7343-DLGT Overview

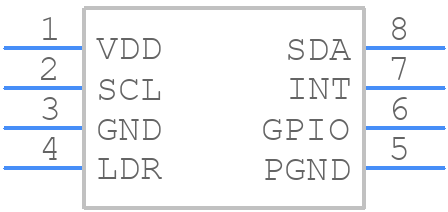

Use the download button to access the AS7343-DLGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS734,
or try a keyword search, such as Other Sensors/Transducers
