Ams OSRAM recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate analog and digital ground plane on the top layer. The sensor should be placed away from high-frequency components and traces.
Calibration involves measuring the sensor's response to a known light source, such as a NIST-traceable calibration lamp, and applying correction factors to the raw data. Ams OSRAM provides a calibration guide and software tools to assist with this process.
The AS7343L-DLGM can handle ambient light intensities up to 100,000 lux, but it's recommended to use an optical filter or diffuser to reduce the intensity and prevent saturation.
The AS7343L-DLGM is rated for operation up to 85°C, but its accuracy and spectral response may be affected at higher temperatures. Ams OSRAM recommends using a temperature compensation algorithm or a thermally stabilized environment for optimal performance.
The AS7343L-DLGM uses an I2C interface for communication. Ams OSRAM provides a software development kit (SDK) with example code and documentation for popular microcontrollers and FPGAs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS7343L-DLGM Overview

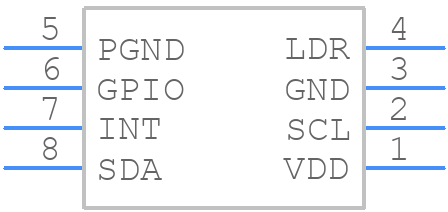

Use the download button to access the AS7343L-DLGM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AS734,
or try a keyword search, such as Other Sensors/Transducers
