AS7C256C-15PCN - Alliance Memory

Description: SRAM 256K, SRAM, 32K x 8, 5V, 28pin PDIP, 15ns, Commercial Temp, C Die

Download AS7C256C-15PCN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AS7C256C-15PCN model

Email notifications will be applied after download.

Send part feedback

Symbol

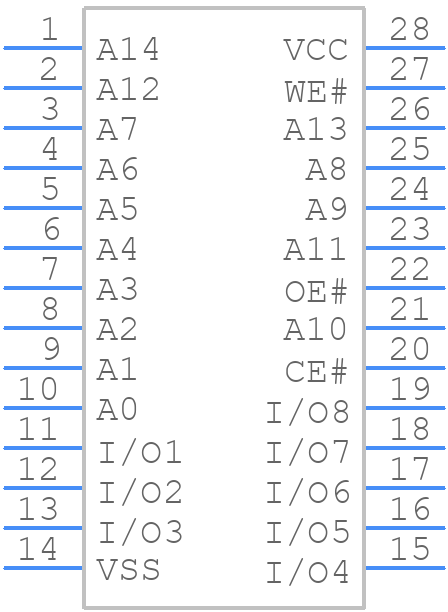

AS7C256C-15PCN - Alliance Memory - PCB symbol

PCB Footprints

AS7C256C-15PCN - Alliance Memory PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-pin 300mil PDIP Package

3D Models

AS7C256C-15PCN - Alliance Memory - 3D model - Dual-In-Line Packages - 28-pin 300mil PDIP Package

Datasheet Download Datasheet
Stock & Prices Price & Stock for AS7C256C-15PCN
Part Number AS7C256C-15PCN
Manufacturer Alliance Memory
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 28-pin 300mil PDIP Package
Released Date May 7, 2025
Last Modified Date May 7, 2025 10:01 AM UTC
Pinout / Pin List Click Here (Member Only)

AS7C256C-15PCN Details

Manufacturer Part Number:
AS7C256C-15PCN
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Manufacturer:
Alliance Memory Inc
Memory IC Type:
STANDARD SRAM

Trust Checks

Community Provided

System Verified

Community Approved

AS7C256C-15PCN Overview

Use the download button to access the AS7C256C-15PCN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS7C2, or try a keyword search, such as SRAMs
