ASCO-50.000MHZ-EK-T3 footprint, schematic symbol and 3D model by ABRACON

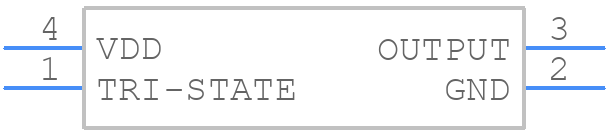

Symbol

PCB Footprints

3D Models

ASCO-50.000MHZ-EK-T3 Details

The recommended operating temperature range for the ASCO-50.000MHZ-EK-T3 is -40°C to +85°C.
The typical power consumption of the ASCO-50.000MHZ-EK-T3 is around 10mA to 20mA, depending on the load capacitance and operating frequency.
Yes, the ASCO-50.000MHZ-EK-T3 is designed to operate in high-vibration environments and can withstand vibrations up to 20G.
The typical start-up time for the ASCO-50.000MHZ-EK-T3 is around 10ms to 20ms, depending on the power supply voltage and load capacitance.
Yes, the ASCO-50.000MHZ-EK-T3 is compatible with lead-free soldering processes and can withstand peak reflow temperatures up to 260°C.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASCO-50.000MHZ-EK-T3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASCO-, or try a keyword search, such as XO
