ASCO2-26.000MHZ-EK-T3 footprint, schematic symbol and 3D model by ABRACON

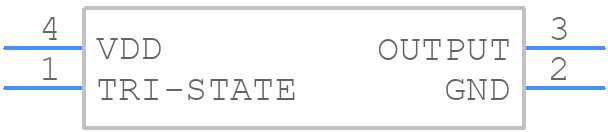

Symbol

PCB Footprints

3D Models

ASCO2-26.000MHZ-EK-T3 Details

Abracon recommends a symmetrical PCB layout with a solid ground plane, and to keep the oscillator away from high-frequency noise sources and digital signals. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
To ensure the oscillator starts up correctly, Abracon recommends applying power to the device slowly (dv/dt < 10V/us) and ensuring that the power supply is stable and noise-free. Additionally, the oscillator should be decoupled from the power supply with a 0.1uF capacitor.
The ASCO2-26.000MHZ-EK-T3 has an operating temperature range of -40°C to +85°C, but it can be customized for extended temperature ranges upon request.
Yes, the ASCO2-26.000MHZ-EK-T3 is designed to withstand vibrations up to 10g peak acceleration, but it's recommended to consult with Abracon's application engineers for specific vibration requirements.
The typical lead time for the ASCO2-26.000MHZ-EK-T3 is 6-8 weeks, but it may vary depending on the quantity and availability. It's recommended to check with Abracon's sales team for the latest lead time information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASCO2-26.000MHZ-EK-T3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASCO2, or try a keyword search, such as XO
