ASDMB-14.31818MHZ-XY-T footprint, schematic symbol and 3D model by ABRACON

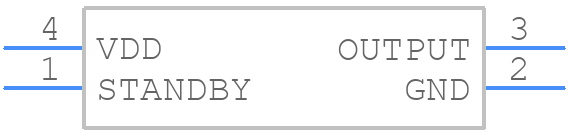

Symbol

PCB Footprints

3D Models

ASDMB-14.31818MHZ-XY-T Details

Manufacturer Part Number:
ASDMB-14.31818MHZ-XY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
14.31818 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.08,65
Physical Dimension:
2.5mm x 2.0mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

The recommended operating temperature range for ASDMB-14.31818MHZ-XY-T is -40°C to +85°C, as specified in the datasheet.
To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the datasheet, and use a solder with a melting point compatible with the device's temperature rating.
The typical power consumption of ASDMB-14.31818MHZ-XY-T is around 10-20mA, depending on the specific application and operating conditions.
Yes, ASDMB-14.31818MHZ-XY-T is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation.
To troubleshoot frequency stability issues, check the power supply voltage, ensure proper soldering and mounting, and verify that the oscillator is operating within its specified temperature range.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASDMB-14.31818MHZ-XY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASDMB, or try a keyword search, such as XO
