Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the crystal oscillator.
To ensure the ASDMB-27.000MHZ-LY-T operates within its specified frequency tolerance, it's crucial to maintain the recommended operating conditions, including voltage, temperature, and load capacitance. Additionally, ensure the crystal oscillator is properly terminated and decoupled to minimize noise and interference.
Abracon recommends storing the ASDMB-27.000MHZ-LY-T in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -20°C to 40°C (-4°F to 104°F), and the relative humidity should be below 80%. Avoid exposing the device to mechanical stress, vibration, or extreme temperatures.
While the ASDMB-27.000MHZ-LY-T is designed to be robust, it's essential to evaluate the device's performance in your specific application. Abracon recommends consulting with their application engineers to determine the suitability of the ASDMB-27.000MHZ-LY-T for high-vibration or high-shock environments.
To troubleshoot issues with the ASDMB-27.000MHZ-LY-T, start by verifying the device is properly connected and powered. Check the voltage supply, decoupling, and termination. Ensure the crystal oscillator is properly loaded and the frequency is within the specified range. If issues persist, consult Abracon's application notes and contact their technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASDMB-27.000MHZ-LY-T Overview

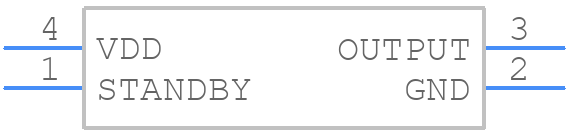

Use the download button to access the ASDMB-27.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.
