ASDMB-44.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

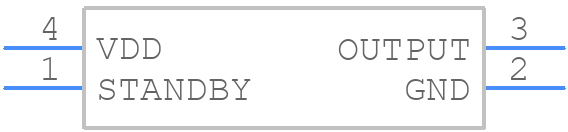

Symbol

PCB Footprints

3D Models

ASDMB-44.000MHZ-LY-T Details

Manufacturer Part Number:
ASDMB-44.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.35
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
44 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Package Body Material:
PLASTIC/EPOXY
Physical Dimension:
2.5mm x 2.0mm x 0.85mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 10 mils (0.25 mm) clearance around the oscillator is recommended to minimize noise and interference.
Abracon recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the oscillator's input and output pins to prevent damage from electrostatic discharge. Additionally, handling the device with an anti-static wrist strap or mat can help prevent ESD damage.
The ASDMB-44.000MHZ-LY-T has an operating temperature range of -40°C to +85°C. However, it's essential to note that the oscillator's frequency stability and accuracy may degrade at extreme temperatures.
While the ASDMB-44.000MHZ-LY-T is designed to be rugged, it's still important to consider the vibration environment. Abracon recommends following the IPC-JEDEC J-STD-033 standard for vibration testing. If the device will be exposed to extreme vibrations, additional mechanical support or vibration damping may be necessary.
Abracon offers custom frequency tolerance options for the ASDMB-44.000MHZ-LY-T. Engineers should contact Abracon's sales team or a authorized distributor to discuss their specific requirements and obtain a custom part number.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASDMB-44.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.
