ASE4204 footprint, schematic symbol and 3D model by TE Connectivity

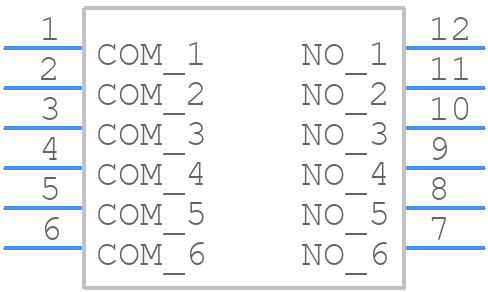

Symbol

click to zoom

PCB Footprints

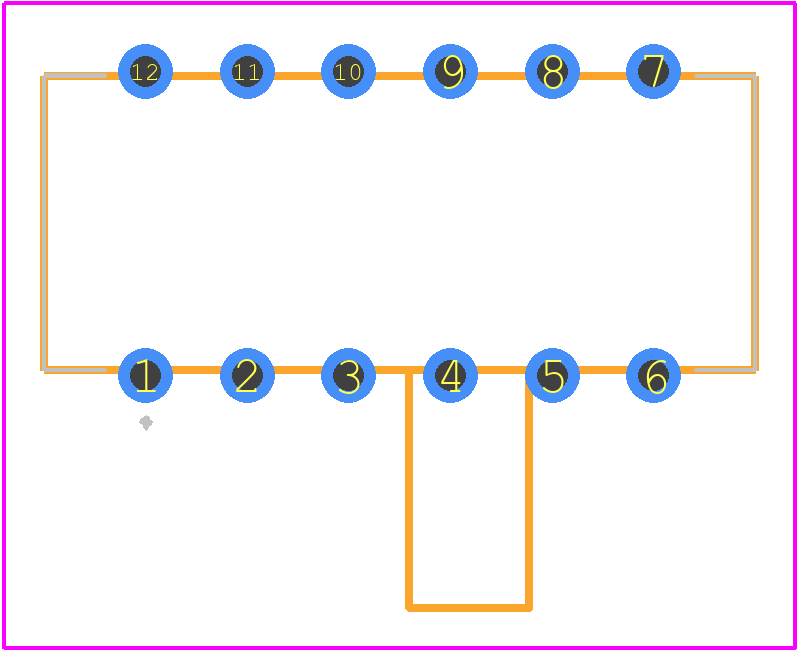

ASE4204 - TE Connectivity PCB footprint - Other - Other - ASE4204-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASE4204
Part Number ASE4204
Manufacturer TE Connectivity
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - ASE4204-3
Released Date Dec 14, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ASE4204 Details

Manufacturer Part Number:
ASE4204
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.90.50
Factory Lead Time:
54 Weeks
Manufacturer:
TE Connectivity
YTEOL:
9.35
Actuator Color:
NATURAL
Actuator Length:
0.11 inch
Actuator Material:
NYLON
Actuator Travel:
2.794 mm
Actuator Type:
EXTENDED TOP TYPE
Body Breadth:
7.37 mm
Body Height:
4.45 mm
Body Length or Diameter:
17.78 mm
Center Contact Plating:
SILVER
Contact (AC) Max Rating R Load:
.3A@115VAC
Contact Current(AC)-Max:
0.3 A
Contact Current(DC)-Max:
0.3 A
Contact Function:
ON-ON
Contact Voltage(AC)-Max:
115 V
Contact Voltage(DC)-Max:
28 V
Electrical Life:
15000 Cycle(s)
End Contact Material:
COPPER ALLOY
Mounting Feature:
PANEL MOUNT
Number of Independent Keys:
1
Number of Positions:
2
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-40 °C
Packing Method:
TUBE
Surface Mount:
NO
Switch Action:
LATCHED
Switch Function:
4PDT
Switch Type:
SLIDE SWITCH
Termination Type:
SOLDER
