ASEMB-30.000MHZ-LY-T - ABRACON

Description: 30 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead

Download ASEMB-30.000MHZ-LY-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

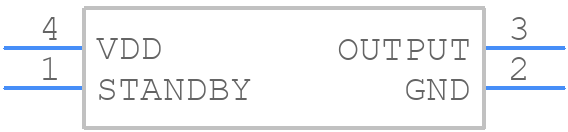

ASEMB-30.000MHZ-LY-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASEMB-30.000MHZ-LY-T - ABRACON PCB footprint - Other - Other - ASEMB
click to zoom
3D Models
ASEMB-30.000MHZ-LY-T - ABRACON - 3D model - Other - ASEMB
click to zoom

ASEMB-30.000MHZ-LY-T Details

  • Manufacturer Part Number:

    ASEMB-30.000MHZ-LY-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Frequency Stability:

    10%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    150 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Frequency-Nom:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    10 KOHM, 15 pF

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC4,.1,86

  • Physical Dimension:

    3.2mm x 2.5mm x 0.85mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ASEMB-30.000MHZ-LY-T Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 10 mils (0.25 mm) clearance around the oscillator is recommended to prevent electromagnetic interference.
  • Abracon recommends using a 10 nF to 100 nF decoupling capacitor between the VCC pin and the GND pin, as close to the oscillator as possible, to filter out noise and ensure stable operation.
  • The ASEMB-30.000MHZ-LY-T has an operating temperature range of -40°C to +85°C, making it suitable for most industrial and commercial applications.
  • Yes, the ASEMB-30.000MHZ-LY-T is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The typical start-up time for the ASEMB-30.000MHZ-LY-T is around 2-5 ms, although this can vary depending on the specific application and circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASEMB-30.000MHZ-LY-T Overview

Use the download button to access the ASEMB-30.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASEMB, or try a keyword search, such as XO
