ASEMB-64.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

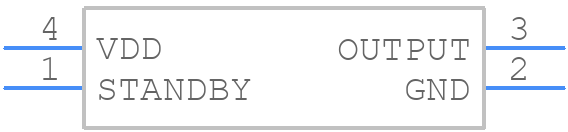

Symbol

PCB Footprints

3D Models

ASEMB-64.000MHZ-LY-T Details

Manufacturer Part Number:
ASEMB-64.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 4 PIN
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; SUPPLY VOLATGE 1.8V AND 2.5V ALSO AVAILABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
64 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.1,83
Packing Method:
TR, 7 INCH
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. This ensures reliable solder joints and minimizes thermal stress on the component.
Handle ASEMB-64.000MHZ-LY-T by the package body, avoiding touching the pins or electrical contacts. Store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures.
The ASEMB-64.000MHZ-LY-T can operate safely within a temperature range of -40°C to +85°C. However, it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
Yes, ASEMB-64.000MHZ-LY-T is designed to withstand moderate vibration levels. However, it's essential to ensure the component is properly mounted and secured to the PCB to prevent mechanical stress and damage.
Abracon provides a recommended PCB layout and land pattern in the datasheet. It's essential to follow these guidelines to ensure optimal performance, minimize signal loss, and prevent thermal issues.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMB-64.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMB, or try a keyword search, such as XO
