ASEMDC1-LR - ABRACON

Description: CMOS XO (Standard) Pin Configurable Oscillator 2.25V ~ 3.6V 14-VFQFN Exposed Pad

Download ASEMDC1-LR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASEMDC1-LR model

Email notifications will be applied after download.

Send part feedback

Symbol

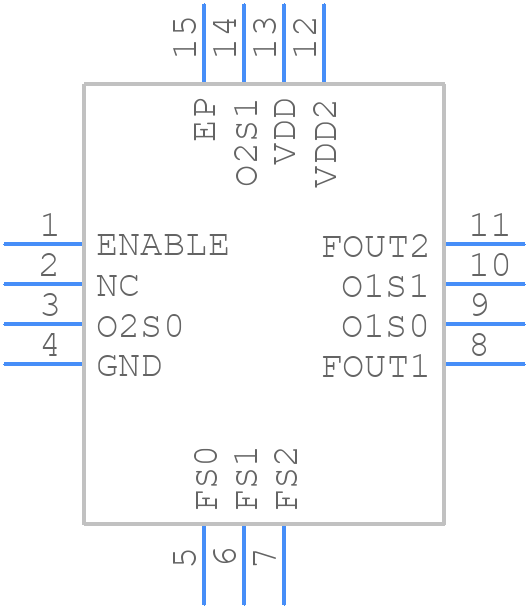

ASEMDC1-LR - ABRACON - PCB symbol

PCB Footprints

ASEMDC1-LR - ABRACON PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-QFN(2.5x3.2)

3D Models

ASEMDC1-LR - ABRACON - 3D model - Quad Flat No-Lead - 14-QFN(2.5x3.2)

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASEMDC1-LR
Part Number ASEMDC1-LR
Manufacturer ABRACON
Pin Count 15
Part Category Crystal or Oscillator
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 14-QFN(2.5x3.2)
Released Date Apr 5, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ASEMDC1-LR Details

Manufacturer Part Number:
ASEMDC1-LR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
Manufacturer:
Abracon Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ASEMDC1-LR Overview

Use the download button to access the ASEMDC1-LR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMD, or try a keyword search, such as XO
