ASEMDC2-LR - ABRACON

Description: Low Jitter Pin Configurable Dual Cmos Output, Ultra Miniature Pure Silicon Clock Oscillator

Download ASEMDC2-LR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASEMDC2-LR model

Email notifications will be applied after download.

Send part feedback

Symbol

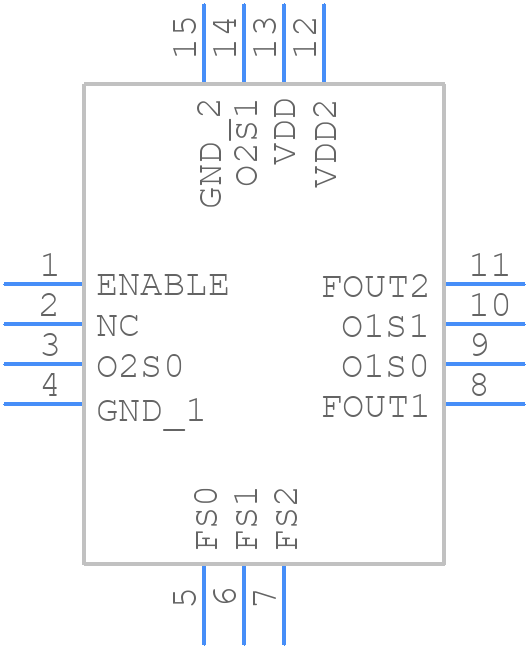

ASEMDC2-LR - ABRACON - PCB symbol

PCB Footprints

ASEMDC2-LR - ABRACON PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-QFN(2.5x3.2)

3D Models

ASEMDC2-LR - ABRACON - 3D model - Quad Flat No-Lead - 14-QFN(2.5x3.2)

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASEMDC2-LR
Part Number ASEMDC2-LR
Manufacturer ABRACON
Pin Count 15
Part Category Crystal or Oscillator
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 14-QFN(2.5x3.2)
Released Date Apr 5, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
