Please enter a minimum 3 letters or numbers
Technical Content
Part Image

ASEMPHC-100.000MHZ-LR-T - ABRACON

Description: 100 MHz XO (Standard) HCSL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead

Download ASEMPHC-100.000MHZ-LR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

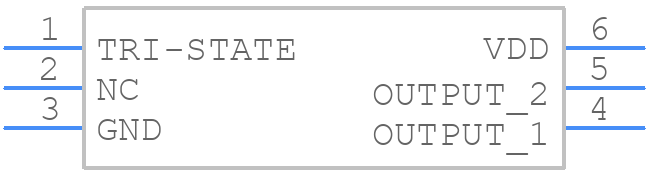

Symbol
ASEMPHC-100.000MHZ-LR-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASEMPHC-100.000MHZ-LR-T - ABRACON PCB footprint - Other - Other - ASEMPHC-100.000MHZ-LR-T
click to zoom
3D Models
ASEMPHC-100.000MHZ-LR-T - ABRACON - 3D model - Other - ASEMPHC-100.000MHZ-LR-T
click to zoom

ASEMPHC-100.000MHZ-LR-T Details

  • Manufacturer Part Number:

    ASEMPHC-100.000MHZ-LR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN, 6 PIN

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCSL

  • Output Load:

    50 OHM

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC6,.1X.12,62/41

  • Physical Dimension:

    3.2mm x 2.5mm x 0.85mm

  • Rise Time-Max:

    0.4 ns

  • Supply Current-Max:

    42 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

ASEMPHC-100.000MHZ-LR-T Frequently Asked Questions (FAQs)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C for a maximum of 10 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, ASEMPHC-100.000MHZ-LR-T is designed to withstand high-vibration environments and can operate reliably in applications with vibration levels up to 20G.
  • Abracon recommends storing ASEMPHC-100.000MHZ-LR-T in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 60%.
  • Yes, ASEMPHC-100.000MHZ-LR-T is compatible with lead-free soldering processes and can be used in RoHS-compliant applications.
  • The typical power consumption of ASEMPHC-100.000MHZ-LR-T is 10mW, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASEMPHC-100.000MHZ-LR-T Overview

Use the download button to access the ASEMPHC-100.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP, or try a keyword search, such as XO

Parts related to ASEMPHC-100.000MHZ-LR-T

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
