ASEMPLP-125.000MHZ-LR-T - ABRACON

Description: 125 MHz XO (Standard) ±25 ppm LVPECL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, -40°C ~ +85°C No Lead

Download ASEMPLP-125.000MHZ-LR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

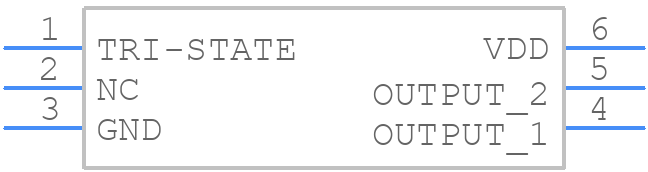

ASEMPLP-125.000MHZ-LR-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASEMPLP-125.000MHZ-LR-T - ABRACON PCB footprint - Other - Other - ASEMPLP-125.000MHZ-LR-T
click to zoom
3D Models
ASEMPLP-125.000MHZ-LR-T - ABRACON - 3D model - Other - ASEMPLP-125.000MHZ-LR-T
click to zoom

ASEMPLP-125.000MHZ-LR-T Details

  • Manufacturer Part Number:

    ASEMPLP-125.000MHZ-LR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    460 MHz

  • Operating Frequency-Min:

    2.3 MHz

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVPECL

  • Output Load:

    50 OHM

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.1,40

  • Physical Dimension:

    3.2mm x 2.5mm x 0.85mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    58 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

ASEMPLP-125.000MHZ-LR-T Frequently Asked Questions (FAQs)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the ASEMPLP-125.000MHZ-LR-T is designed to withstand vibrations up to 20G. However, it's recommended to perform additional testing and validation to ensure the component meets the specific requirements of your application.
  • Abracon recommends storing ASEMPLP-125.000MHZ-LR-T in a dry, cool place with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
  • Yes, the ASEMPLP-125.000MHZ-LR-T is compatible with lead-free soldering processes. Abracon ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical power consumption of ASEMPLP-125.000MHZ-LR-T is approximately 10mW. However, this value may vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASEMPLP-125.000MHZ-LR-T Overview

Use the download button to access the ASEMPLP-125.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
