ASEMPLP-150.000MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

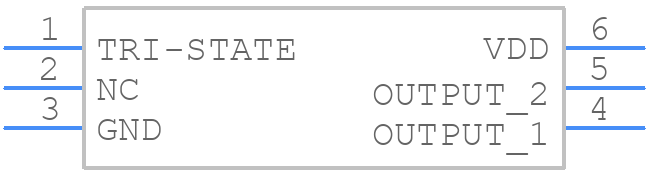

Symbol

PCB Footprints

3D Models

ASEMPLP-150.000MHZ-LR-T Details

Abracon recommends following the recommended PCB layout guidelines provided in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
While the ASEMPLP-150.000MHZ-LR-T is rated for operation up to 85°C, Abracon recommends derating the frequency and power handling at higher temperatures to ensure reliable operation. Consult with Abracon's application engineers for specific guidance on high-temperature applications.
Abracon recommends following the recommended soldering profile and guidelines provided in the datasheet, including using a soldering iron with a temperature range of 250-260°C, and ensuring the component is properly aligned and secured to the PCB during the soldering process.
Lead time and MOQ (Minimum Order Quantity) may vary depending on the region, distribution channel, and availability. It's recommended to check with Abracon's authorized distributors or sales representatives for the most up-to-date information on lead time and MOQ.
Yes, the ASEMPLP-150.000MHZ-LR-T is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLP-150.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP, or try a keyword search, such as XO
