ASEMPLP-156.250MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

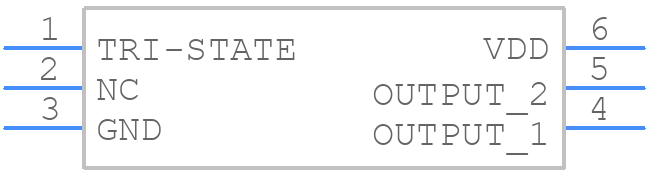

Symbol

PCB Footprints

3D Models

ASEMPLP-156.250MHZ-LR-T Details

Abracon recommends storing the device in a dry, cool place, away from direct sunlight, and in its original packaging to prevent damage and moisture absorption.
While the device is rated for operation up to 85°C, it's essential to consider the derating curve and thermal management to ensure reliable operation in high-temperature environments.
Handle the device in an ESD-controlled environment, wear an ESD wrist strap or use ESD-safe tools, and avoid touching the device's pins or components to prevent ESD damage.
Abracon recommends following the JEDEC J-STD-020 standard for soldering, with a peak temperature of 260°C and a dwell time of 10-30 seconds to ensure reliable solder joints.
While the device is designed to withstand some vibration, it's essential to consider the specific vibration profile and ensure the device is properly mounted and secured to prevent mechanical stress.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLP-156.250MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP, or try a keyword search, such as XO
