ASEMPLP-212.500MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

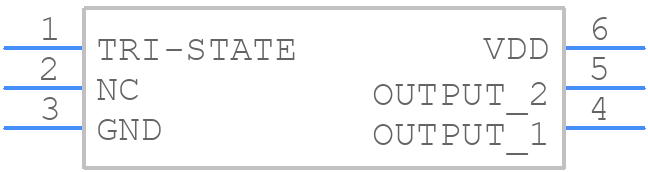

Symbol

PCB Footprints

3D Models

ASEMPLP-212.500MHZ-LR-T Details

Abracon recommends following the recommended PCB layout guidelines provided in the application note AN-03, which includes using a ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
While the ASEMPLP-212.500MHZ-LR-T is rated for operation up to 85°C, Abracon recommends derating the frequency and power handling at higher temperatures. Consult with Abracon's application engineers for specific guidance on high-temperature applications.
Follow the recommended soldering and mounting guidelines provided in the datasheet, including using a soldering iron with a temperature of 260°C (max) and ensuring the component is properly aligned and seated on the PCB.
Lead time and MOQ (Minimum Order Quantity) may vary depending on the region and availability. Contact Abracon's sales team or authorized distributors for the most up-to-date information on lead time and MOQ.
Yes, the ASEMPLP-212.500MHZ-LR-T is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability and safety.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLP-212.500MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP, or try a keyword search, such as XO
