ASEMPLV-100.000MHZ-L-T footprint, schematic symbol and 3D model by ABRACON

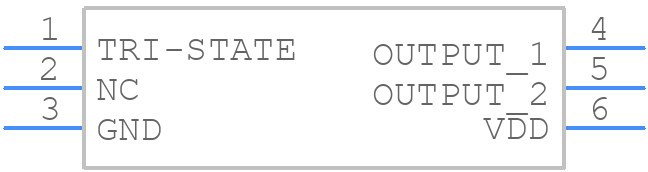

Symbol

PCB Footprints

3D Models

ASEMPLV-100.000MHZ-L-T Details

Manufacturer Part Number:
ASEMPLV-100.000MHZ-L-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
DIFFERENTIAL OUTPUT: STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
50%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLV-100.000MHZ-L-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP, or try a keyword search, such as XO
