Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 2-layer PCB is recommended, with the oscillator on the top layer and the ground plane on the bottom layer.
To ensure proper startup, Abracon recommends applying power to the oscillator slowly (dv/dt < 10V/ms) and ensuring that the power supply is stable and noise-free. Additionally, the oscillator should be decoupled from the power supply with a 10nF to 100nF capacitor.
The ASEMPLV-148.350MHZ-LR-T has an operating temperature range of -40°C to +85°C, but it can be customized for extended temperature ranges upon request.
Yes, the ASEMPLV-148.350MHZ-LR-T is designed to withstand vibrations up to 20G peak acceleration, making it suitable for use in high-vibration environments. However, it's essential to ensure proper PCB mounting and secure the oscillator to prevent mechanical stress.
The typical lead time for the ASEMPLV-148.350MHZ-LR-T is 6-8 weeks, but it may vary depending on the quantity and availability. It's recommended to check with Abracon or an authorized distributor for the most up-to-date lead time information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASEMPLV-148.350MHZ-LR-T Overview

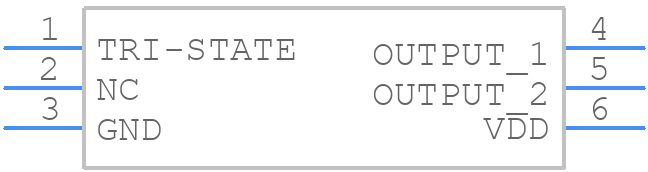

Use the download button to access the ASEMPLV-148.350MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
