Abracon recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet or application notes to ensure optimal performance and minimize signal degradation.
The ASEMPLV-156.250MHZ-LR-T has a specified frequency stability of ±20 ppm over the operating temperature range of -40°C to 85°C. For more detailed information, please consult the datasheet or contact Abracon's technical support.
The recommended drive level for the ASEMPLV-156.250MHZ-LR-T is 1.8V ± 0.1V. Operating the oscillator outside of this range may affect its frequency stability, jitter, and overall performance.
The ASEMPLV-156.250MHZ-LR-T has a specified rise and fall time of 2.5 ns and 3.5 ns, respectively. These values can impact the design of downstream circuits and signal integrity. Consult the datasheet or application notes for more information.
The ASEMPLV-156.250MHZ-LR-T has built-in ESD protection and latch-up prevention mechanisms. However, it is still recommended to follow proper handling and assembly procedures to prevent damage during manufacturing and operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASEMPLV-156.250MHZ-LR-T Overview

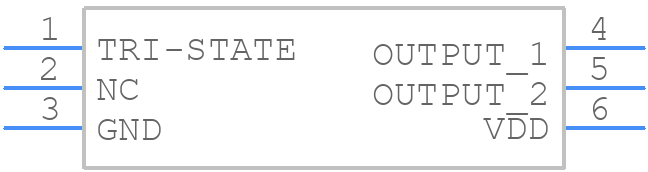

Use the download button to access the ASEMPLV-156.250MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP,
or try a keyword search, such as XO
