ASFC4G31M-51BIN - Alliance Memory

Description: eMMC 4GB 32GB X 1 NAND - 3V - 153 Ball FBGA

Download ASFC4G31M-51BIN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

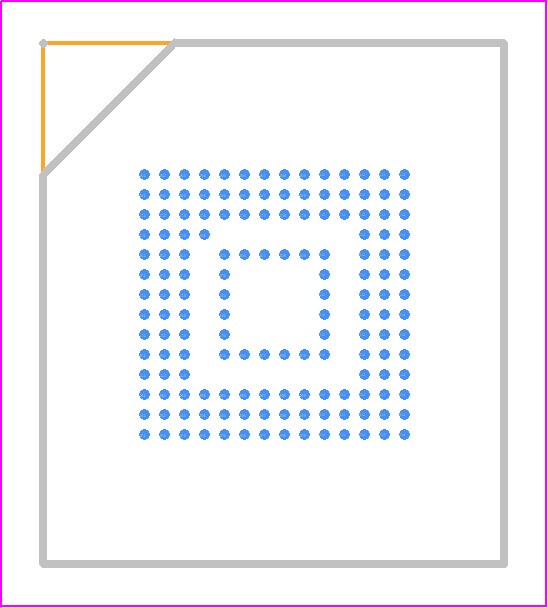

PCB Footprints
ASFC4G31M-51BIN - Alliance Memory PCB footprint - BGA - BGA - 153ball FBGA
click to zoom
3D Models
ASFC4G31M-51BIN - Alliance Memory  - 3D model - BGA - 153ball FBGA
click to zoom

ASFC4G31M-51BIN Details

  • Manufacturer Part Number:

    ASFC4G31M-51BIN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FBGA-153

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    200 MHz

  • JESD-30 Code:

    R-PBGA-B153

  • Length:

    13 mm

  • Memory Density:

    34359738368 bit

  • Memory IC Type:

    eMMC

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    153

  • Number of Words:

    4294967296 words

  • Number of Words Code:

    4000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA153,14X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3.3 V

  • Seated Height-Max:

    1 mm

  • Serial Bus Type:

    EMMC 5.1

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Type:

    MLC NAND TYPE

  • Width:

    11.5 mm

  • Write Protection:

    HARDWARE
