ASFL1-24.576MHZ-EK-T - ABRACON

Description: Oscillator XO 24.576MHz ±30ppm 15pF (Stability) HCMOS/TTL 60% 3.3V 4-Pin SMD T/R

Download ASFL1-24.576MHZ-EK-T Model

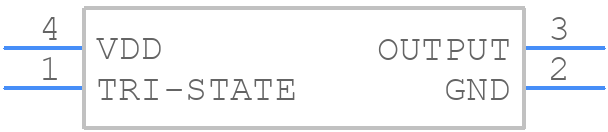

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ASFL1-24.576MHZ-EK-T - ABRACON PCB footprint - Other - Other - ASFL1
click to zoom
3D Models
ASFL1-24.576MHZ-EK-T - ABRACON  - 3D model - Other - ASFL1
click to zoom

ASFL1-24.576MHZ-EK-T Details

  • Manufacturer Part Number:

    ASFL1-24.576MHZ-EK-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Mainland China

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    5

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    10 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    30%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    24.576 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Oscillator Type:

    HCMOS/TTL

  • Output Load:

    5 TTL, 15 pF

  • Package Equivalence Code:

    DILCC4,.12,98

  • Physical Dimension:

    5mm x 3.2mm x 1.3mm

  • Rise Time-Max:

    10 ns

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    40/60 %

  • Terminal Finish:

    Gold (Au)

ASFL1-24.576MHZ-EK-T Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the ASFL1-24.576MHZ-EK-T is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • While the ASFL1-24.576MHZ-EK-T is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific environmental conditions and potential derating factors to ensure reliable operation.
  • To ensure proper decoupling, use a 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel, placed as close to the oscillator as possible, to filter out noise and ripple from the power supply.
  • The typical start-up time for the ASFL1-24.576MHZ-EK-T oscillator is around 2-5 ms, but this can vary depending on the specific application and power-up conditions.
  • Yes, the ASFL1-24.576MHZ-EK-T is designed to minimize EMI emissions. However, it's essential to follow proper PCB design and layout guidelines to ensure optimal EMI performance.
