ASFL1-33.333MHZ-EK-T footprint, schematic symbol and 3D model by ABRACON

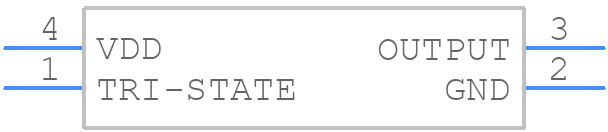

Symbol

PCB Footprints

3D Models

ASFL1-33.333MHZ-EK-T Details

Abracon recommends a specific land pattern and PCB layout to ensure optimal performance. The recommended layout can be found in the Abracon application note AN-04, which provides detailed guidelines for PCB design and layout.
The ASFL1-33.333MHZ-EK-T is rated for operation up to 85°C, but its frequency stability and accuracy may degrade at higher temperatures. For high-reliability applications, Abracon recommends using the ASFL1-33.333MHZ-EK-T in environments below 70°C to ensure optimal performance.
Yes, the ASFL1-33.333MHZ-EK-T is designed to provide low jitter performance, making it suitable for applications such as high-speed data converters, serializers, and deserializers. However, the actual jitter performance may vary depending on the specific application and PCB design.
The recommended drive level for the ASFL1-33.333MHZ-EK-T is 1-10 μW, depending on the specific application and load capacitance. Exceeding the recommended drive level may result in reduced oscillator performance or even damage to the device.
Yes, the ASFL1-33.333MHZ-EK-T is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFL1-33.333MHZ-EK-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFL1, or try a keyword search, such as XO
