ASFLMB-10.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

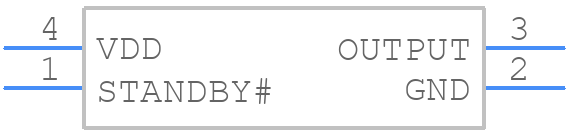

Symbol

PCB Footprints

3D Models

ASFLMB-10.000MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-10.000MHZ-LY-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
10 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the crystal oscillator.
To ensure reliable startup, Abracon recommends a power-up ramp time of 1 ms or slower, and a power supply voltage of 1.8V to 3.3V. Additionally, ensure the oscillator is properly decoupled with a 0.01 μF capacitor between VCC and GND.
The ASFLMB-10.000MHZ-LY-T is rated for operation from -40°C to +85°C. However, it's essential to note that the oscillator's frequency stability and accuracy may degrade at extreme temperatures.
The ASFLMB-10.000MHZ-LY-T is a fixed-frequency oscillator, and its frequency cannot be adjusted. If you need a different frequency, you'll need to select a different part number or consider using a programmable oscillator.
The typical current consumption of the ASFLMB-10.000MHZ-LY-T is around 10 mA, but this can vary depending on the specific application and operating conditions. Be sure to check the datasheet for more information on power consumption.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMB-10.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFLM, or try a keyword search, such as XO
