ASFLMB-12.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

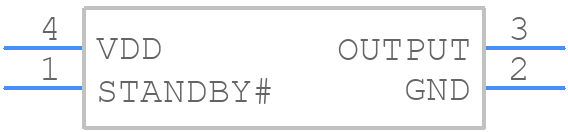

Symbol

PCB Footprints

3D Models

ASFLMB-12.000MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-12.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
12 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a symmetrical layout with the crystal oscillator placed near the center of the PCB, with minimal routing and no vias under the component to minimize noise and ensure optimal performance.
Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
The recommended drive level for the ASFLMB-12.000MHZ-LY-T is 1 μW to 10 μW. Exceeding this drive level may cause the oscillator to malfunction or reduce its lifespan.
Store the crystal oscillator in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive force to the component during handling and shipping.
The ASFLMB-12.000MHZ-LY-T is rated for operation from -40°C to 85°C. Operating the component outside this range may affect its performance, accuracy, or lifespan.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMB-12.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFLM, or try a keyword search, such as XO
