ASFLMB-16.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

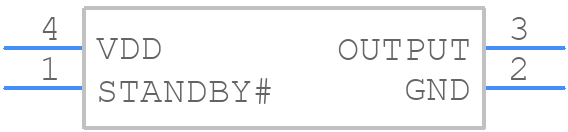

Symbol

PCB Footprints

3D Models

ASFLMB-16.000MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-16.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
16 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the crystal oscillator.
The ASFLMB-16.000MHZ-LY-T oscillator is designed to handle power-up and power-down sequences without any specific requirements. However, it's recommended to follow a gradual power-up and power-down sequence to prevent any potential damage to the device.
Abracon provides a recommended PCB layout and land pattern in the datasheet. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
The ASFLMB-16.000MHZ-LY-T oscillator is rated for operation up to 85°C (185°F). While it can tolerate high temperatures, it's essential to consider the specific application requirements and potential thermal management needs.
The lead time and availability of ASFLMB-16.000MHZ-LY-T may vary depending on the region and distributor. It's recommended to check with authorized distributors or Abracon's website for the latest information on lead times and availability.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMB-16.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.
