ASFLMB-20.000MHZ-LY-T - ABRACON

Description: MEMS OSC XO 20.0000MHZ LVCMOS

Download ASFLMB-20.000MHZ-LY-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

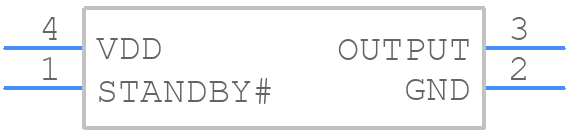

ASFLMB-20.000MHZ-LY-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASFLMB-20.000MHZ-LY-T - ABRACON PCB footprint - Other - Other - AbraconASFLM4Pin
click to zoom
3D Models
ASFLMB-20.000MHZ-LY-T - ABRACON - 3D model - Other - AbraconASFLM4Pin
click to zoom

ASFLMB-20.000MHZ-LY-T Details

  • Manufacturer Part Number:

    ASFLMB-20.000MHZ-LY-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.5

  • Additional Feature:

    TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE

  • Fall Time-Max:

    2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    10%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    150 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    10 KOHM, 15 pF

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC4,.12

  • Physical Dimension:

    5.0mm x 3.2mm x 0.85mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    2 ns

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ASFLMB-20.000MHZ-LY-T Frequently Asked Questions (FAQs)

  • Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. This ensures reliable solder joints and minimizes thermal stress on the component.
  • The ASFLMB-20.000MHZ-LY-T oscillator is designed to handle power-up and power-down sequences without any specific requirements. However, it's recommended to follow a gradual power-up sequence to ensure stable oscillation. A soft-start circuit or a power-ramp-up circuit can be used to minimize inrush currents and ensure reliable startup.
  • For optimal performance, Abracon recommends a PCB layout with a solid ground plane, minimal trace lengths, and a 50-ohm transmission line impedance. Keep the oscillator input and output traces separate and away from noise sources. A 4-layer PCB with a dedicated ground plane is recommended for high-frequency designs.
  • The ASFLMB-20.000MHZ-LY-T is rated for operation up to 85°C. For high-temperature applications above 85°C, Abracon recommends using a different oscillator model specifically designed for high-temperature operation, such as the ASFLMB-20.000MHZ-HT. Consult the datasheet for the specific temperature range and derating information.
  • The ASFLMB-20.000MHZ-LY-T oscillator is designed to be resistant to EMI, but it's still important to follow proper PCB layout and shielding practices to minimize EMI effects. Use a metal shield or a Faraday cage to enclose the oscillator and surrounding components, and ensure a solid ground plane to reduce EMI susceptibility.
