ASFLMB-24.576MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

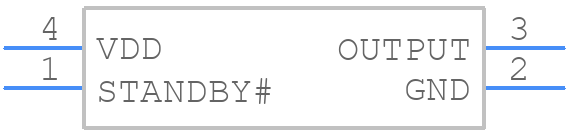

Symbol

PCB Footprints

3D Models

ASFLMB-24.576MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-24.576MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
24.576 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a 0.1uF decoupling capacitor between VCC and GND, placed as close to the oscillator as possible.
The oscillator is rated for operation up to 85°C, but its frequency stability may degrade above 70°C. For high-reliability applications, consider using a more temperature-stable oscillator or implementing temperature compensation.
Yes, but ensure that the oscillator's power supply is isolated from other power domains using a ferrite bead or a power domain filter to prevent noise coupling and ensure reliable operation.
The recommended drive level is 1-10 μW, which is typical for most CMOS logic families. Exceeding this drive level may cause the oscillator to malfunction or reduce its lifespan.
The oscillator's metal package provides some shielding against EMI and RFI. However, it's still important to follow good PCB design practices, such as using a solid ground plane, and consider adding EMI filters or shielding if the design is sensitive to electromagnetic interference.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMB-24.576MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFLM, or try a keyword search, such as XO
