ASFLMB-25.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

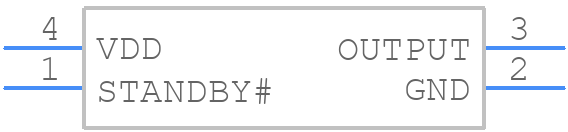

Symbol

PCB Footprints

3D Models

ASFLMB-25.000MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-25.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.5
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
16 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

The recommended storage condition for ASFLMB-25.000MHZ-LY-T is to store them in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to +85°C and humidity below 80%.
Yes, ASFLMB-25.000MHZ-LY-T is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and soldering to prevent damage.
Yes, ASFLMB-25.000MHZ-LY-T is compatible with lead-free soldering. The device is RoHS-compliant and can be soldered using lead-free soldering techniques.
The thermal resistance of ASFLMB-25.000MHZ-LY-T is typically around 30°C/W. However, this value may vary depending on the specific application and operating conditions.
ASFLMB-25.000MHZ-LY-T is designed to operate in temperatures ranging from -40°C to +85°C. However, prolonged exposure to high temperatures may affect the device's performance and lifespan.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMB-25.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFLM, or try a keyword search, such as XO
