ASFLMB-33.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

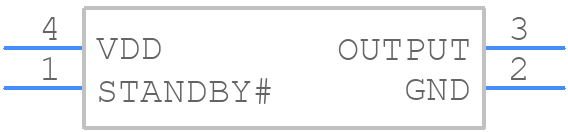

Symbol

PCB Footprints

3D Models

ASFLMB-33.000MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-33.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
33 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a layout with a solid ground plane, minimal signal trace length, and a 10nF decoupling capacitor between VCC and GND to ensure optimal performance and reduce noise.
The oscillator is designed to start oscillating within 2-5ms after power-up, and it will stop oscillating within 1-2ms after power-down. It's recommended to follow a slow power-up ramp (10-20ms) to ensure reliable startup.
The recommended operating temperature range is -40°C to +85°C, but it can operate up to +125°C with reduced performance and accuracy. Consult Abracon for specific temperature-related performance data.
Yes, the oscillator is designed to withstand vibrations up to 10g and shocks up to 100g. However, it's recommended to consult Abracon for specific vibration and shock testing data to ensure reliable operation in harsh environments.
The typical current consumption is around 10-20mA, but it can vary depending on the specific application, voltage, and temperature. Consult the datasheet or Abracon for more detailed information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMB-33.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFLM, or try a keyword search, such as XO
