ASFLMPLV-200.000MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

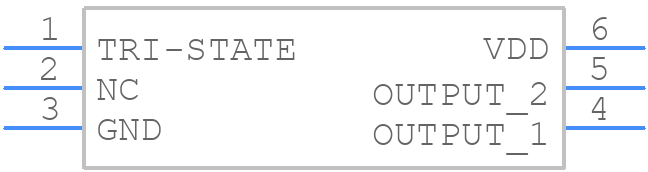

Symbol

PCB Footprints

3D Models

ASFLMPLV-200.000MHZ-LR-T Details

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
Yes, the ASFLMPLV-200.000MHZ-LR-T is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation.
To minimize jitter and ensure stability, ensure a stable power supply, use a low-ESR capacitor, and maintain a consistent temperature. Additionally, consider using a phase-locked loop (PLL) or a clock conditioner to further reduce jitter.
Keep the oscillator as close to the target clock input as possible, use a ground plane, and minimize signal traces to reduce noise and signal degradation. Avoid routing signals under or near the oscillator.
Yes, the ASFLMPLV-200.000MHZ-LR-T has a typical current consumption of 10mA, making it suitable for low-power designs. However, consider the overall system power budget and optimize the design for power efficiency.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASFLMPLV-200.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASFLM, or try a keyword search, such as XO
