ASFLMPLV-34.000MHZ-LR-T - ABRACON

Description: 34 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead

Download ASFLMPLV-34.000MHZ-LR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

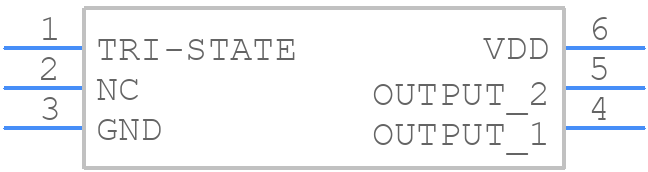

ASFLMPLV-34.000MHZ-LR-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASFLMPLV-34.000MHZ-LR-T - ABRACON PCB footprint - Other - Other - ASFLMPLV-34.000MHZ-LR-T-1
click to zoom
3D Models
ASFLMPLV-34.000MHZ-LR-T - ABRACON - 3D model - Other - ASFLMPLV-34.000MHZ-LR-T-1
click to zoom

ASFLMPLV-34.000MHZ-LR-T Details

  • Manufacturer Part Number:

    ASFLMPLV-34.000MHZ-LR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.5

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    460 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Frequency-Nom:

    34 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    50 OHM, 2 pF

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.12

  • Physical Dimension:

    5.0mm x 3.2mm x 0.85mm

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

ASFLMPLV-34.000MHZ-LR-T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ASFLMPLV-34.000MHZ-LR-T is -40°C to +85°C.
  • Yes, the ASFLMPLV-34.000MHZ-LR-T is compatible with lead-free soldering processes and is RoHS compliant.
  • The typical power consumption of the ASFLMPLV-34.000MHZ-LR-T is around 1.5mA to 2.5mA, depending on the load capacitance and operating conditions.
  • Yes, the ASFLMPLV-34.000MHZ-LR-T is designed to withstand high-vibration and high-shock environments, making it suitable for industrial and automotive applications.
  • The typical start-up time for the ASFLMPLV-34.000MHZ-LR-T is around 2ms to 5ms, depending on the power supply and load conditions.
