ASG2-LJ-125.000MHZ-513291 - ABRACON

Description: 125 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead

Download ASG2-LJ-125.000MHZ-513291 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASG2-LJ-125.000MHZ-513291 model

Email notifications will be applied after download.

Send part feedback

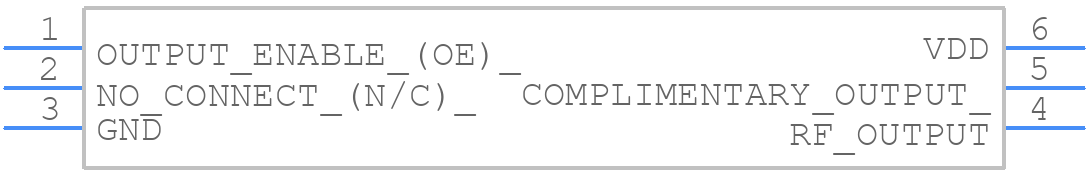

Symbol

ASG2-LJ-125.000MHZ-513291 - ABRACON - PCB symbol

PCB Footprints

ASG2-LJ-125.000MHZ-513291 - ABRACON PCB footprint - Other - Other - 2.5mmx2.00mm

3D Models

ASG2-LJ-125.000MHZ-513291 - ABRACON - 3D model - Other - 2.5mmx2.00mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASG2-LJ-125.000MHZ-513291
Part Number ASG2-LJ-125.000MHZ-513291
Manufacturer ABRACON
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 2.5mmx2.00mm
Released Date Apr 30, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ASG2-LJ-125.000MHZ-513291 Details

Manufacturer Part Number:
ASG2-LJ-125.000MHZ-513291
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 6 PIN
Factory Lead Time:
18 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; BULK
Fall Time-Max:
0.6 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
35%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
125 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM, 10 pF
Physical Dimension:
2.5mm x 2.0mm x 1.0mm
Rise Time-Max:
0.6 ns
Supply Voltage-Max:
2.625 V
Supply Voltage-Min:
2.375 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

ASG2-LJ-125.000MHZ-513291 Frequently Asked Questions (FAQs)

The operating temperature range of the ASG2-LJ-125.000MHZ-513291 is -40°C to +85°C.
Yes, the ASG2-LJ-125.000MHZ-513291 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The ASG2-LJ-125.000MHZ-513291 comes in a 2.5mm x 2.0mm SMD package.
Yes, the ASG2-LJ-125.000MHZ-513291 is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.
The typical start-up time of the ASG2-LJ-125.000MHZ-513291 is 2-5 milliseconds.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ASG2-LJ-125.000MHZ-513291 Overview

Use the download button to access the ASG2-LJ-125.000MHZ-513291 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASG2-, or try a keyword search, such as XO
