ASG2-LJ-156.250MHZ-513282 footprint, schematic symbol and 3D model by ABRACON

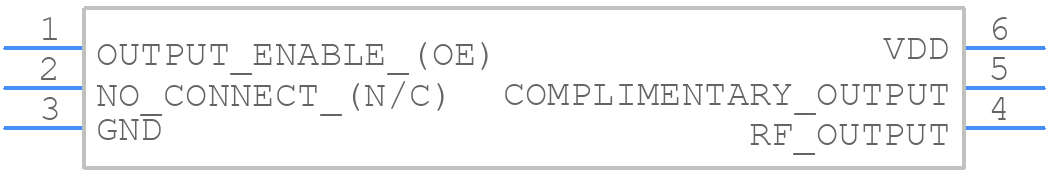

Symbol

PCB Footprints

3D Models

ASG2-LJ-156.250MHZ-513282 Details

Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. However, it's essential to consult the specific soldering guidelines for your production process and equipment.
The ASG2-LJ-156.250MHZ-513282 is rated for operation up to 85°C, but it can tolerate short-term excursions up to 100°C. However, prolonged exposure to high temperatures may affect the oscillator's frequency stability and lifespan.
Abracon recommends using a 10nF to 100nF decoupling capacitor with a voltage rating of 10V or higher, placed as close to the oscillator as possible, to ensure stable operation and minimize noise sensitivity.
Yes, the ASG2-LJ-156.250MHZ-513282 is a RoHS-compliant component, meaning it meets the European Union's Restriction of Hazardous Substances (RoHS) directive, which restricts the use of certain hazardous substances in electronic components.
The typical lead time for the ASG2-LJ-156.250MHZ-513282 can vary depending on the region, distributor, and quantity. However, Abracon typically quotes a lead time of 8-12 weeks for standard orders. It's recommended to check with authorized distributors or Abracon's customer service for the most up-to-date lead time information.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASG2-LJ-156.250MHZ-513282 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASG2-, or try a keyword search, such as XO
