ASGTX-D-500.000MHZ-1 - ABRACON

Description: 500 MHz VCTCXO LVDS Oscillator 3.135V ~ 3.465V - 6-SMD, No Lead

Download ASGTX-D-500.000MHZ-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

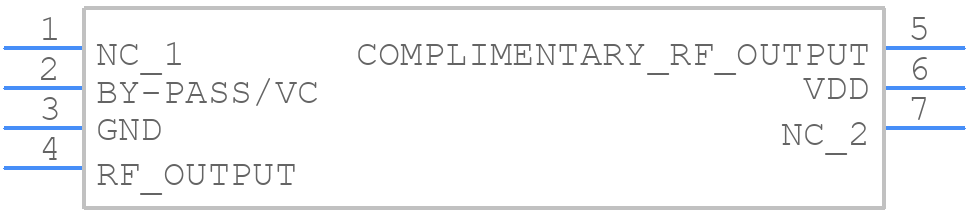

Symbol
ASGTX-D-500.000MHZ-1 - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASGTX-D-500.000MHZ-1 - ABRACON PCB footprint - Other - Other - ASGTX
click to zoom
3D Models
ASGTX-D-500.000MHZ-1 - ABRACON - 3D model - Other - ASGTX
click to zoom

ASGTX-D-500.000MHZ-1 Details

  • Manufacturer Part Number:

    ASGTX-D-500.000MHZ-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Country Of Origin:

    New Zealand

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    COMPLEMENTARY OUTPUT; BULK

  • Aging:

    1 PPM/FIRST YEAR

  • Control Voltage-Max:

    3.3 V

  • Fall Time-Max:

    0.45 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    10 ppm

  • Frequency Stability:

    1%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    500 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    LVDS

  • Physical Dimension:

    9.0mm x 7.0mm x 2.24mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

ASGTX-D-500.000MHZ-1 Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines provided in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal signal integrity and reduce EMI.
  • While the ASGTX-D-500.000MHZ-1 is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may affect the device's performance and require additional circuitry to achieve optimal results.
  • The ASGTX-D-500.000MHZ-1 has an operating temperature range of -40°C to +85°C, but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
  • Yes, the ASGTX-D-500.000MHZ-1 is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly and operation.
  • The ASGTX-D-500.000MHZ-1 has a typical power handling capability of +13 dBm, but this can vary depending on the specific application, operating frequency, and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASGTX-D-500.000MHZ-1 Overview

Use the download button to access the ASGTX-D-500.000MHZ-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASGTX, or try a keyword search, such as TCVCXO
